The “AeroRigid” family of panels are lightweight, smooth surfaced honeycomb sandwich panels for aircraft interior components.

The Nomex® honeycomb used for the majority of the AeroRigidTM family is "SAH", which is Showa’s own product.

And we have several panels that are certified by Boeing, and used for any types of aircraft such as large, medium, and regional jet airliner.

PRODUCTS

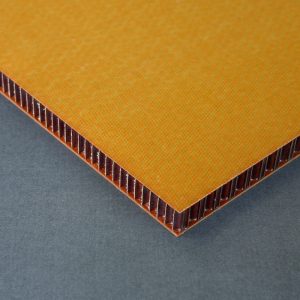

AeroRigid™4G6G

DESCRIPTION

For use in aircraft Floor panels for bulk cargo compartments.
Facing reinforcement: Woven fiberglass cloth
Facing resin system: Phenolic
Honeycomb core: High density SAH

FEATURES

・Low heat release
・Low smoke and toxicity generation
・High impact strength
・Service temperature: up to 180ºF

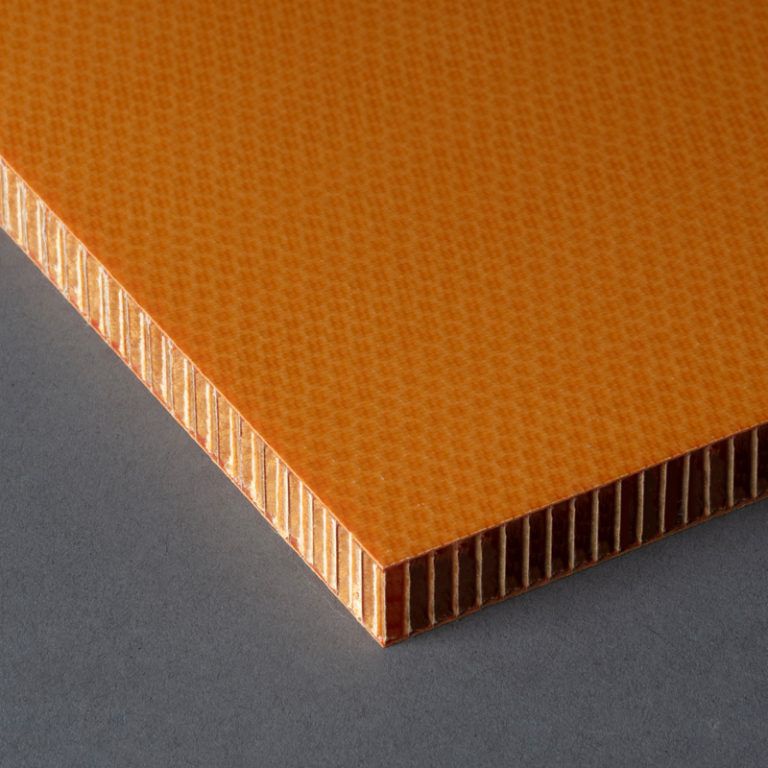

AeroRigid™2223

DESCRIPTION

For use in aircraft cabin interiors such as galleys, lavatories, bulkheads, partitions, storage compartment and crew rests

Facing reinforcement: Woven fiberglass cloth
Facing resin system: Phenolic
Honeycomb core: SAH-1/8-3.0

FEATURES

Low heat release, low smoke and toxicity generation, moisture and corrosion resistance

AeroRigid™2623

DESCRIPTION

For use in commercial aircraft interior structures and non-structures such as crew rests and galley areas

Facing reinforcement: Woven fiberglass cloth
Facing resin system: Epoxy
Honeycomb core: SAH-1/8-3.0

FEATURES

Light weight and high strength, good self-extinguishing, corrosion resistance

AeroRigid™291A

DESCRIPTION

For use in aircraft interior structural and nonstructural applications such as monuments, shelves, partitions, bulkheads and galleys.

Facing: 2024-T3 CLAD
Honeycomb core: 5052 AL 1/4"Cell, 3.4lbs/ft3
Adhesive: Epoxy

FEATURES

High strength-to-weight ratio, cost-effective

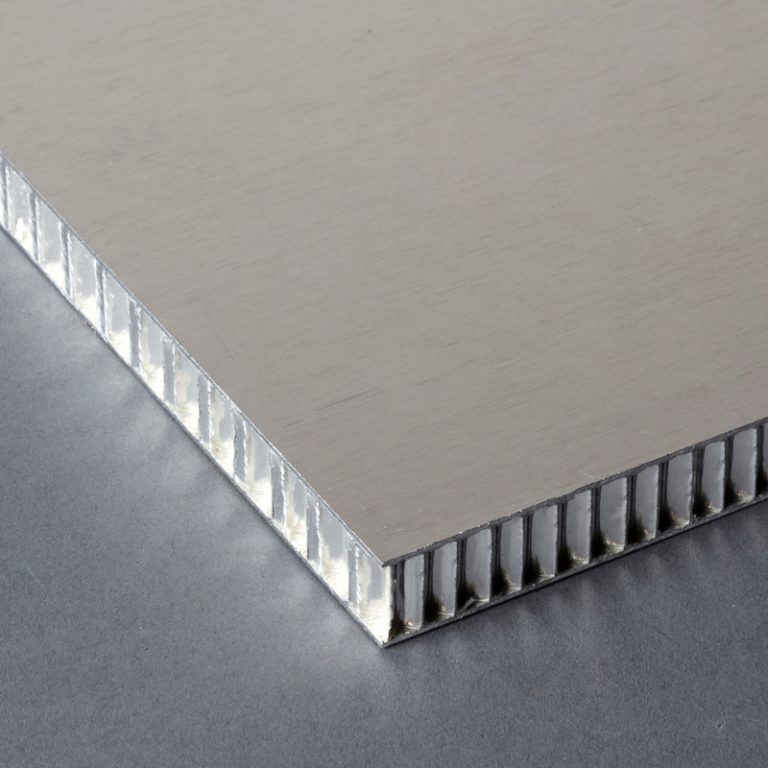

AeroRigid™291B

DESCRIPTION

For use in aircraft interior structural and nonstructural applications such as monuments, shelves, partitions, bulkheads and galleys

Facing: 2024-T3 CLAD
Honeycomb core: 5052 AL 3/16"Cell, 5.7lbs/ft3
Adhesive: Epoxy

FEATURES

High strength-to-weight ratio, cost-effective

AeroRigid™4K3L

DESCRIPTION

For use in aircraft Flooring panels for containerize cargo holds.
Facing reinforcement: Woven fiberglass cloth
Facing resin system: Phenolic
Adhesive: Epoxy Honeycomb core: High density SAH

FEATURES

・Low heat release
・Low smoke and toxicity generation
・High impact strength
・Service temperature: up to 180ºF

AeroRigid™4155

DESCRIPTION

For use in floor panel of aircraft

Facing reinforcement: Unidirectional fiberglass
Facing resin system: Epoxy
Honeycomb core: SAH-1/8-13.0

FEATURES

・High strength-to-weight ratio
・High impact strength
・Moisture and corrosion resistance

AeroRigid™4B4D

DESCRIPTION

For use in cargo floor panel of aircraft

Facing reinforcement: Unidirectional fiberglass
Facing resin system: Epoxy
Honeycomb core: 5052 AL 1/8-8.1

FEATURES

・High impact strength
・High strength-to-weight ratio
・Low smoke generation
・Economical alternative to panels using aramid honeycomb

AeroRigid™4C6C

DESCRIPTION

For use in cargo floor panel of aircraft

Facing reinforcement: Unidirectional fiberglass
Facing resin system: Epoxy
Honeycomb core: 5052 AL 1/8-8.1

FEATURES

・High impact strength
・High strength-to-weight ratio
・Low smoke generation
・Economical alternative to panels using aramid honeycomb

SFPS42003,SFPS42005

DESCRIPTION

For use in floor panel of aircraft

Facing reinforcement:
Unidirectional carbon fiber with fiberglass overlay
Facing resin system: Epoxy
Honeycomb core: SAH-1/8-5.5

FEATURES

From small lot available with short lead time by a proper production management

SFPS42002

DESCRIPTION

For use in floor panel of aircraft

Facing reinforcement:
Unidirectional carbon fiber with fiberglass overlay
Facing resin system: Epoxy
Honeycomb core: SAH-5/32-9.0

FEATURES

From small lot with short delivery time by a proper production management
